for Residual Current Circuit Breaker. Also known as a residual current device (RCD), it is designed to quickly disconnect a circuit whenever it detects that the electric current is not balanced between the phase conductor and the neutral conductor. This imbalance might indicate current leakage, typically due to a fault or other hazardous condition. RCCB are designed to provide added protection against the risk of electric shock.

Differences Between MCCB and RCCB

Now that we’ve defined both MCCB and RCCB, let’s explore the differences between the two devices. These differences are crucial for understanding when and where each type of protection device should be used.

1. Protection Function

MCCBs are primarily designed to protect against overcurrents and short circuits. They provide protection for the electrical system and equipment by interrupting the current flow when it exceeds the rated capacity of the breaker. On the other hand, RCCBs are specifically designed to protect against earth leakage or ground fault currents. They provide an added layer of safety by quickly disconnecting the circuit in the event of a ground fault, thereby reducing the risk of electric shock.

2. Sensitivity

One of the key differences between MCCB and RCCB is their sensitivity to different types of faults. MCCB are designed to be sensitive to overcurrents and short circuits, typically at higher fault levels. In contrast, RCCB are highly sensitive to small imbalances in electrical currents, such as those caused by current leakage due to a fault or insulation breakdown. This high sensitivity allows RCCBs to quickly detect and respond to potential electrical hazards, providing a greater level of safety.

3. Tripping Mechanism

The tripping mechanism in MCCBs and RCCBs also differs based on their intended protection functions. MCCBs use a combination of thermal and magnetic elements to detect and respond to overcurrents and short circuits. When the current exceeds a certain threshold, the thermal element heats up and causes the breaker to trip, while the magnetic element responds to short-circuit currents. RCCBs, on the other hand, utilize a differential current transformer to monitor the balance between the phase and neutral conductors. When an imbalance is detected, indicating a ground fault, the RCCB will trip to disconnect the circuit.

4. Application

The choice between using an MCCB and an RCCB depends on the specific application and the type of protection required. MCCBs are commonly used in electrical distribution systems to protect against overloads and short circuits in main power lines and branch circuits. They are ideal for protecting electrical equipment and minimizing the risk of fire due to overcurrent conditions. RCCBs, on the other hand, are typically employed in circuits where the risk of electric shock due to ground faults is a significant concern. They are commonly used to provide additional protection in residential, commercial, and industrial installations, especially in wet areas or locations where electrical equipment or appliances may come into contact with water.

5. Coordination

In some cases, both MCCBs and RCCBs may be used together to provide comprehensive protection for electrical systems. This coordination ensures that both overcurrent and ground fault protection are effectively integrated to minimize the risk of electrical hazards. By combining the two types of protection devices, it is possible to achieve a higher level of safety and reliability in electrical installations.

Conclusion

In conclusion, while both MCCBs and RCCBs serve the essential function of protecting electrical circuits and equipment, they do so in different ways and are designed to address specific types of electrical faults. MCCBs are primarily focused on overcurrent and short-circuit protection, providing critical protection for electrical systems and equipment. In contrast, RCCBs focus on ground fault protection, offering high-sensitivity detection of current imbalances to reduce the risk of electric shock. Understanding the differences between MCCBs and RCCBs is essential for selecting the appropriate protection devices for different applications and ensuring the safety and reliability of electrical installations.

What are the main differences between MCCBs and RCCBs

Molded Case Circuit Breakers (MCCBs) and Residual Current Circuit Breakers (RCCBs) are two types of circuit protection devices used in electrical systems. While both serve the purpose of protecting electrical circuits and equipment, they operate differently and are designed to address specific types of electrical faults. Here are the key differences between MCCBs and RCCBs:

1. Protection Function:

   - MCCBs are primarily designed to protect against overcurrents and short circuits. They provide protection for the electrical system and equipment by interrupting the current flow when it exceeds the rated capacity of the breaker.

   - RCCBs are specifically designed to protect against earth leakage or ground fault currents. They provide an added layer of safety by quickly disconnecting the circuit in the event of a ground fault, reducing the risk of electric shock.

2. Sensitivity:

   - MCCBs are sensitive to overcurrents and short circuits, typically at higher fault levels.

   - RCCBs are highly sensitive to small imbalances in electrical currents, such as those caused by current leakage due to a fault or insulation breakdown.

3. Tripping Mechanism:

   - MCCBs use a combination of thermal and magnetic elements to detect and respond to overcurrents and short circuits.

   - RCCBs utilize a differential current transformer to monitor the balance between the phase and neutral conductors. When an imbalance is detected, indicating a ground fault, the RCCB will trip to disconnect the circuit.

4. Application:

   - MCCBs are commonly used in electrical distribution systems to protect against overloads and short circuits in main power lines and branch circuits. They are ideal for protecting electrical equipment and minimizing the risk of fire due to overcurrent conditions.

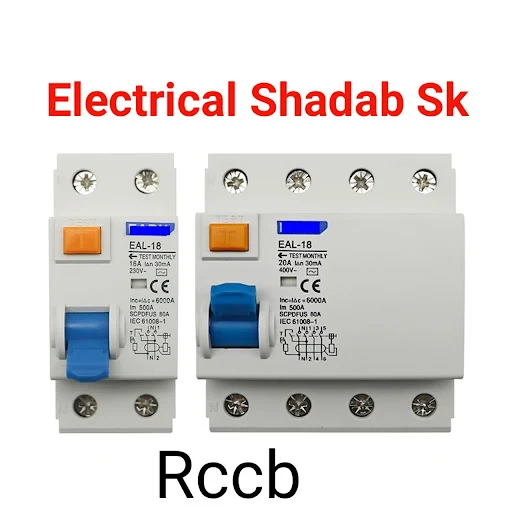

  RCCB Breaker Meaning



RCCBs are typically employed in circuits where the risk of electric shock due to ground faults is a significant concern. They are commonly used to provide additional protection in residential, commercial, and industrial installations, especially in wet areas or locations where electrical equipment or appliances may come into contact with water.

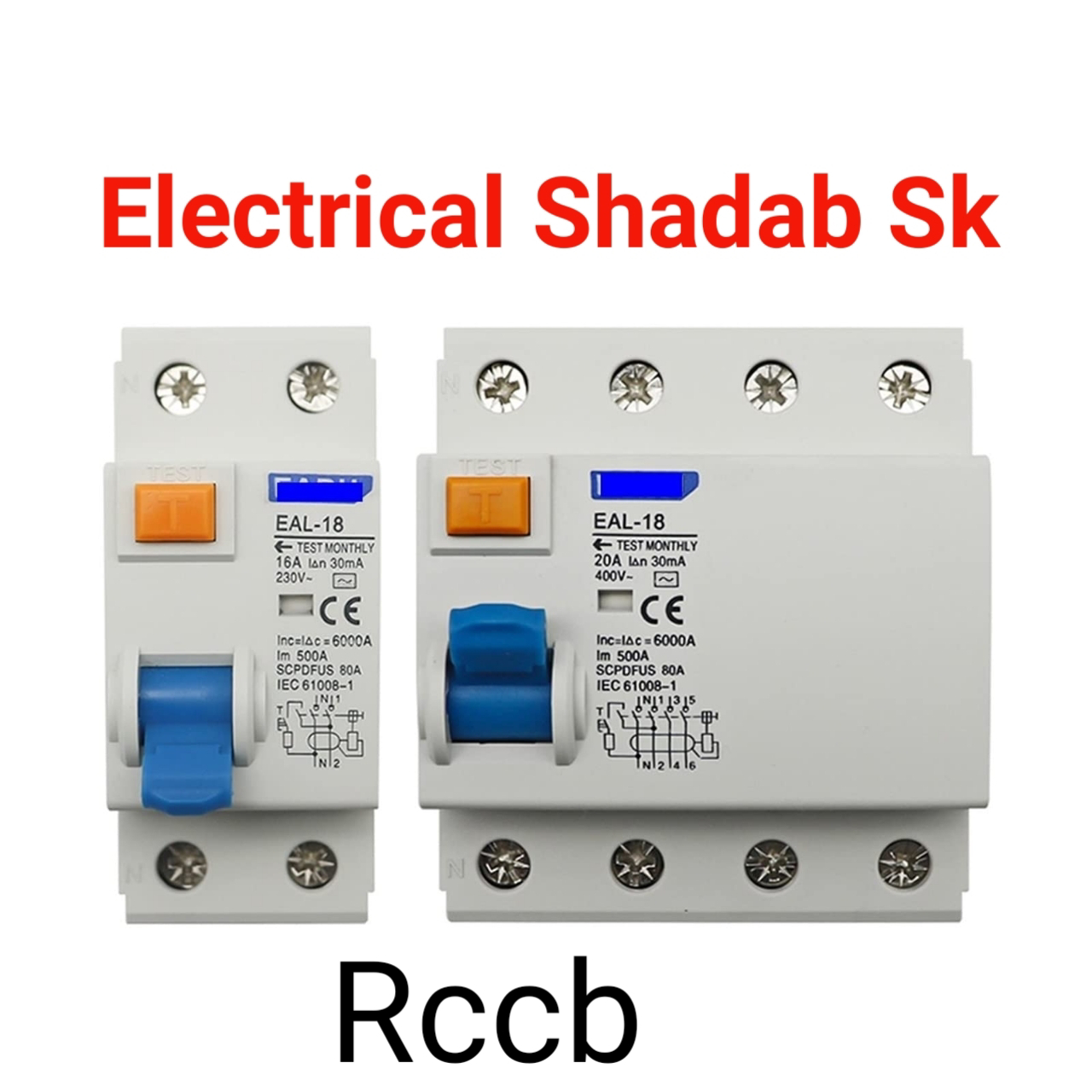

RCCB ELCB Difference Function

5. Coordination:

   - In some cases, both MCCB and RCCB may be used together to provide comprehensive protection for electrical systems. This coordination ensures that both overcurrent and ground fault protection are effectively integrated to minimize the risk of electrical hazards.

Understanding these differences is essential for selecting the appropriate protection devices for different applications and ensuring the safety and reliability of electrical installations.
